Vertical Shaft Impactor AGV-Series
AMRIT offers a wide range of VSI crushers to meet its various production needs. The enclosed rotor and rock box configuration enables the rock-on-rock crushing, producing and well-shaped, consistent material with low wear costs.
Technical Specifications

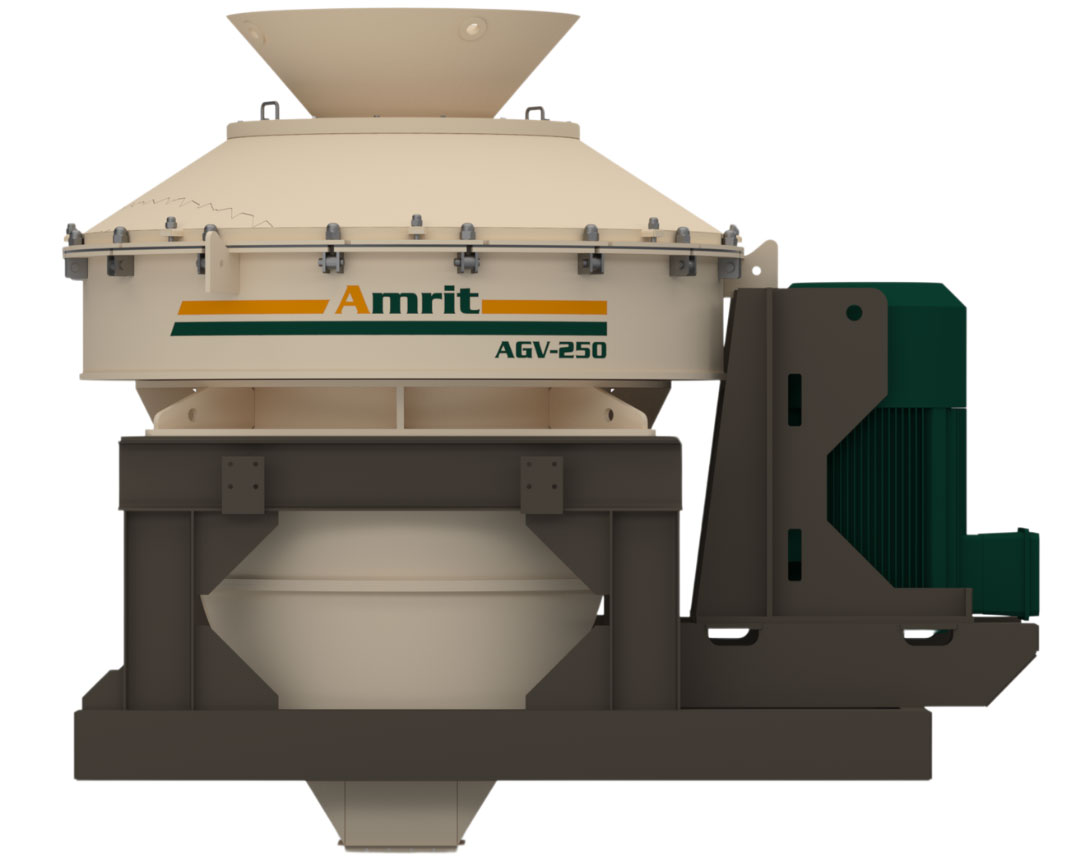

| MODEL NO | AGV-100 | AGV-150 | AGV-200 | AGV-250 | AGV-300 | AGV-350 | AGV-500 |
|---|---|---|---|---|---|---|---|
| Rotor Size | 760 | 900 | 900 | 1000 | 1000 | 1000 | 1000 |
| Rotor Speed (m/sec) | 45 – 70 | 45 – 70 | 45 – 70 | 45 – 70 | 45 – 70 | 45 – 75 | 45 – 75 |

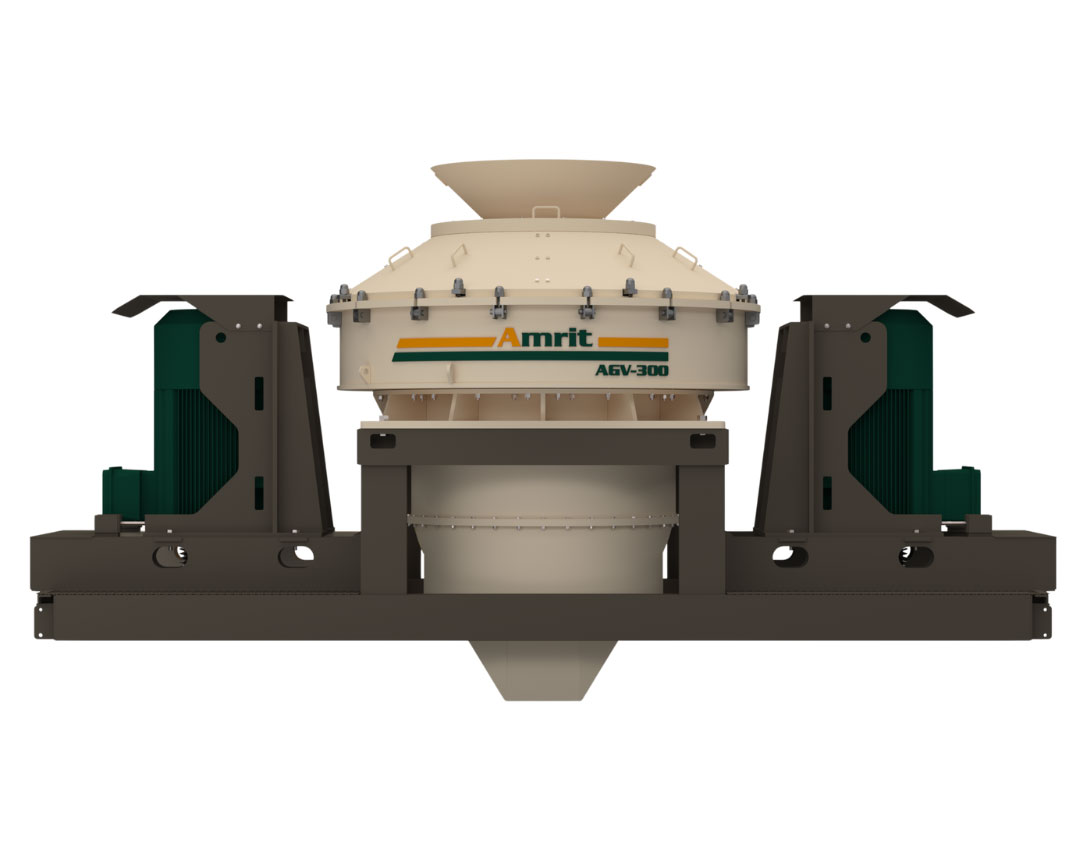

| Motor Capacity (HP/Kw) | 147HP / 110Kw | 214HP / 160Kw | 268HP / 200Kw | 335HP / 250Kw | 2 x 214HP /2 x 160Kw DRR | 2 x 241HP /2 x 180Kw DRR | 2 x 335HP /2 x 250Kw DRR |
| Capacity (TPH) | 75 – 140 | 120 – 200 | 140 – 240 | 200 – 350 | 250 – 360 | 320 – 450 | 350 – 550 |
NOTE: The capacity figures shown in the above chart are approximate and may vary depending on the version and stone specifications.
Build A Better
World Together
Advantages
- Premium shaped aggregates.
- Easy and safe maintenance.
- Low operation cost for per metric Ton.
- Reduced power consumption.
- Reduced Risk of Segregation.
AGV-Series Specifications
- Easy Portability and quick installation with minimum support structures.
- Designed on the basis of rock-on-rock mechanism.
- Refer to the table for the Size of the Rotor.
- Feedbox and discharge box are inbuilt in construction.
- For Motor Power Refer table.
- An 8V section pulley with a QD bush is used for the belt drive.
- Advanced Rotor and wear parts.
