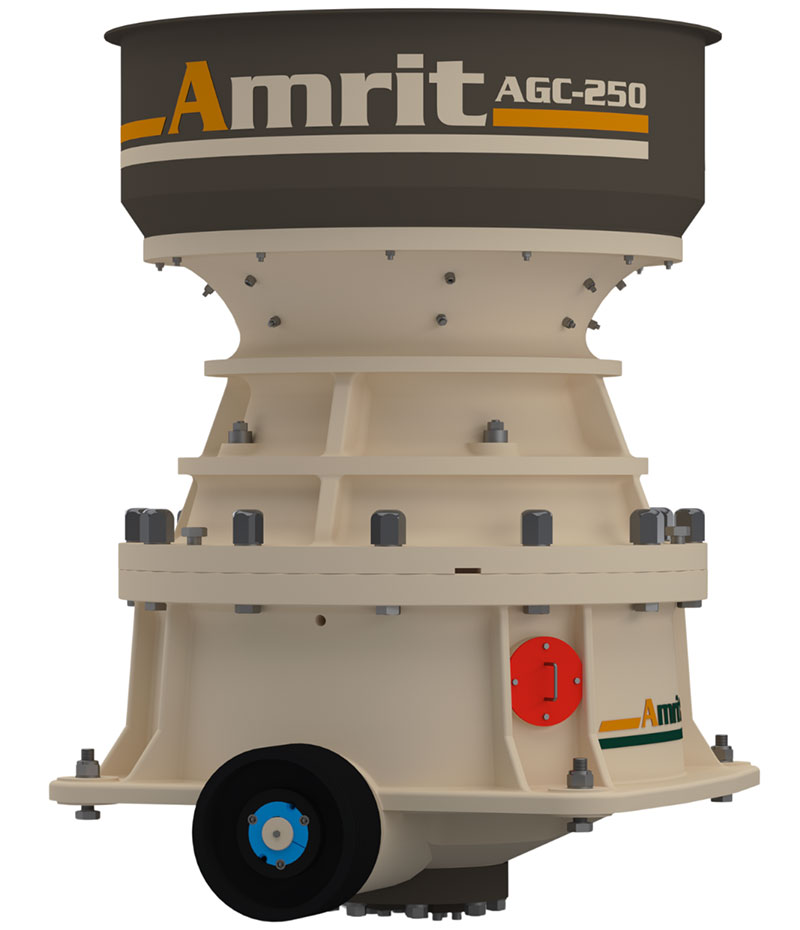

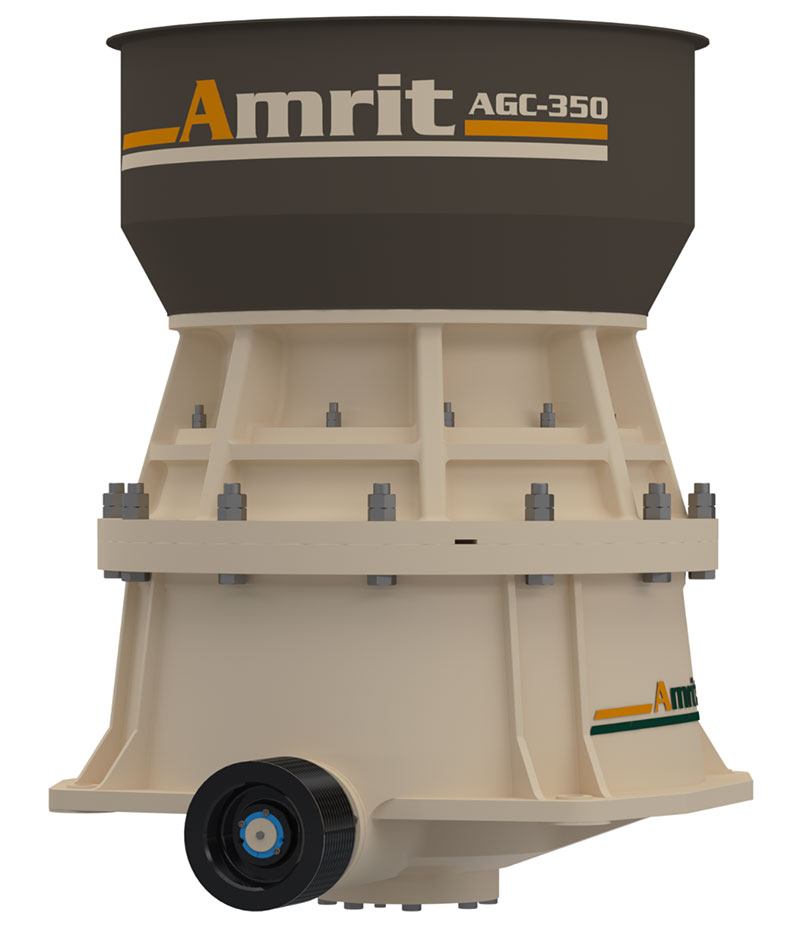

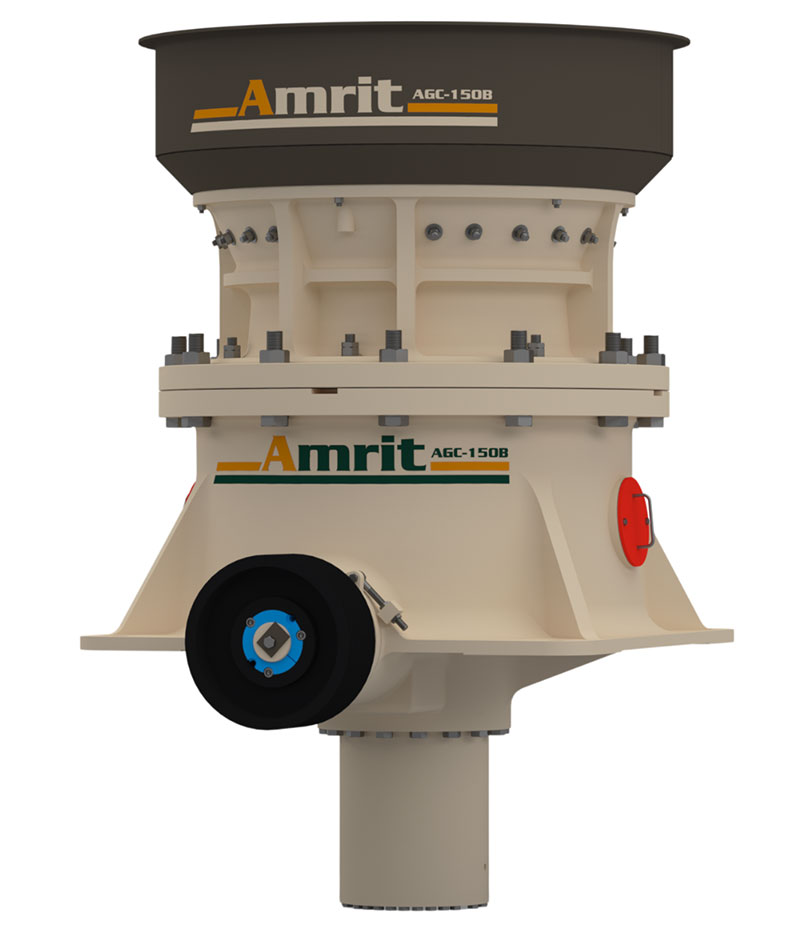

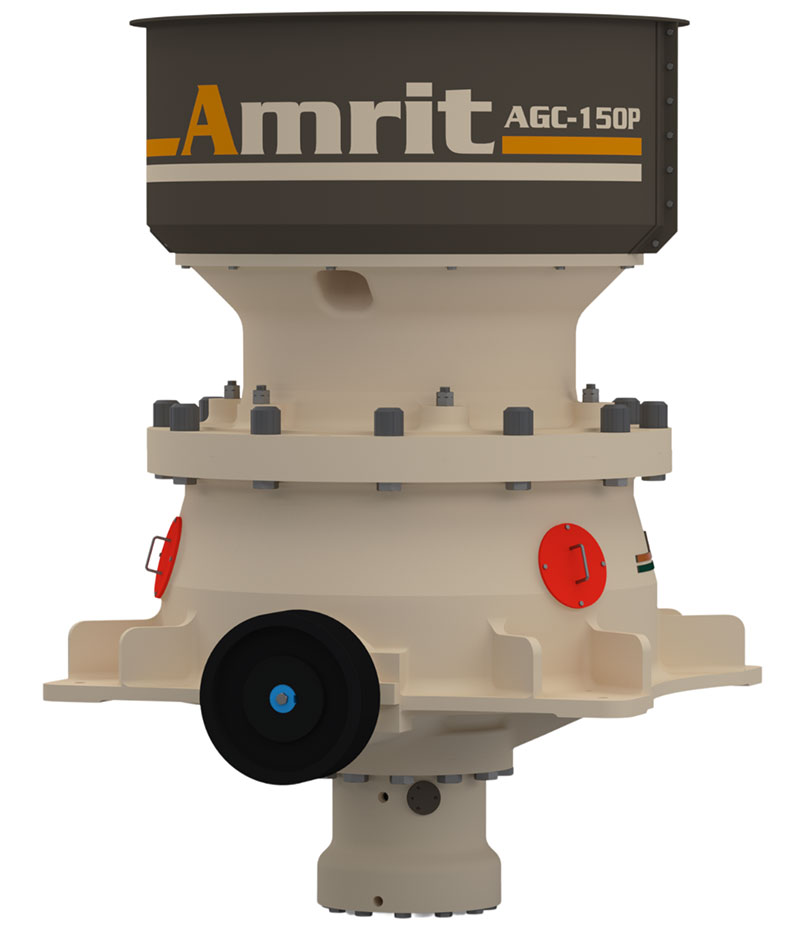

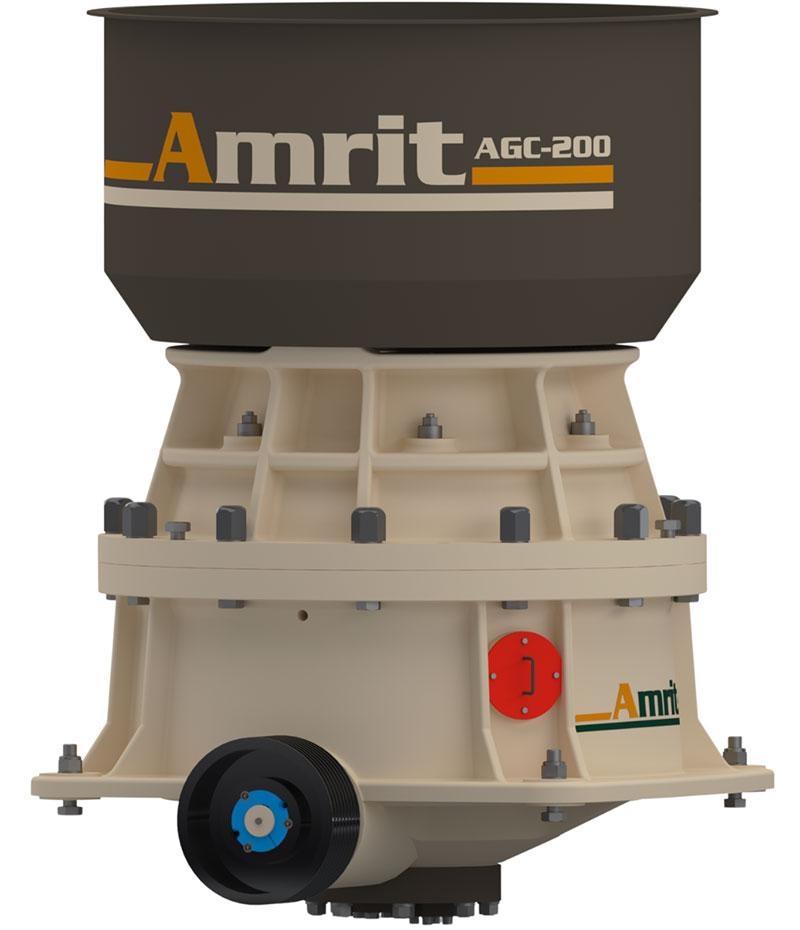

Cone Crusher AGC-Series
AMRIT offers a wide range of highperformance cone crushers designed for optimal efficiency and reliability with low maintenance costs. Their robust design ensures exceptional results, superior material shape, and minimal wear for high-volume applications
Cone Crusher AGC-Series Product Catalog
Technical Specifications
| Model No | AGC-150B | AGC-150P | AGC-200 | AGC-250 | AGC-250P | AGC-350 |
|---|---|---|---|---|---|---|
| Feed Opening (mm/in) | 150 | 150 | 190 | 220 | 260 | 270 |
| CSS Range (Min / Max) | 16 – 25 | 24 – 32 | 22 – 32 | 25 – 35 | 22 – 38 | 25 – 40 |
| Motor (HP/Kw) | 147HP/110Kw | 147HP/110Kw | 177HP/132Kw | 215HP/160Kw | 241HP/180Kw | 268HP/200Kw |
| GPM | 315 | 320 | 315 | 320 | 330 | 280 |
| Capacity (Avg TPH) Varies Upon CSS | 110 – 160 | 110 – 160 | 155 – 200 | 165 – 260 | 200 – 350 | 290 – 425 |
Build A Better
World Together
Advantages
- Premium shaped aggregates.
- Easy and safe maintenance.
- Low operation cost for per metric Ton.
- Reduced power consumption.
- Reduced Risk of Segregation.
AGC-Series Specifications
- Operation and maintenance friendly machine.
- The use of high-quality bearings ensures smooth operation, reducing friction and wear.
- Bearings are designed for maximum lifespan, even under high-stress conditions.
- Designed to handle large feed sizes and can process larger quantities of material.
- Low Power Consumption.
- Components are easily accessible for inspections, replacements, and repairs.
