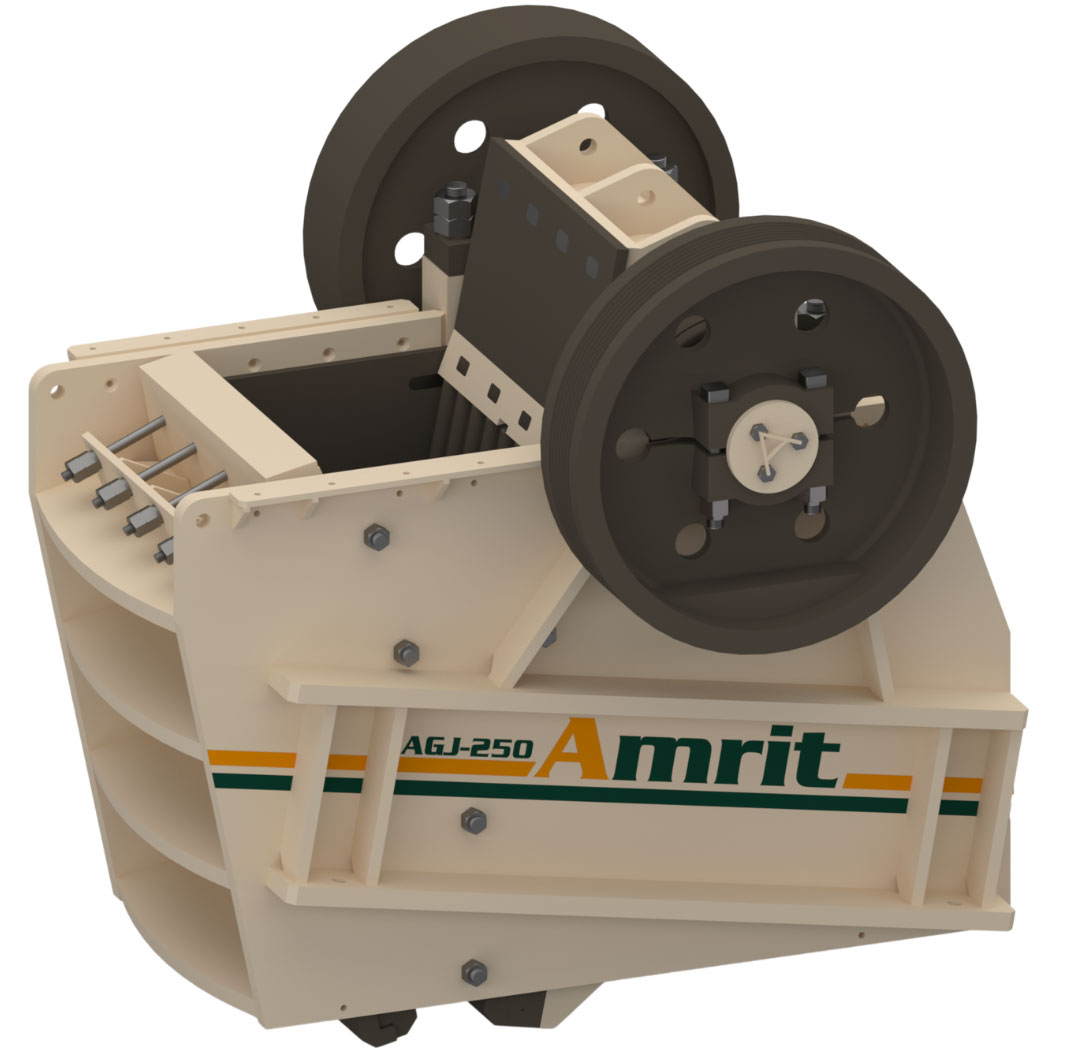

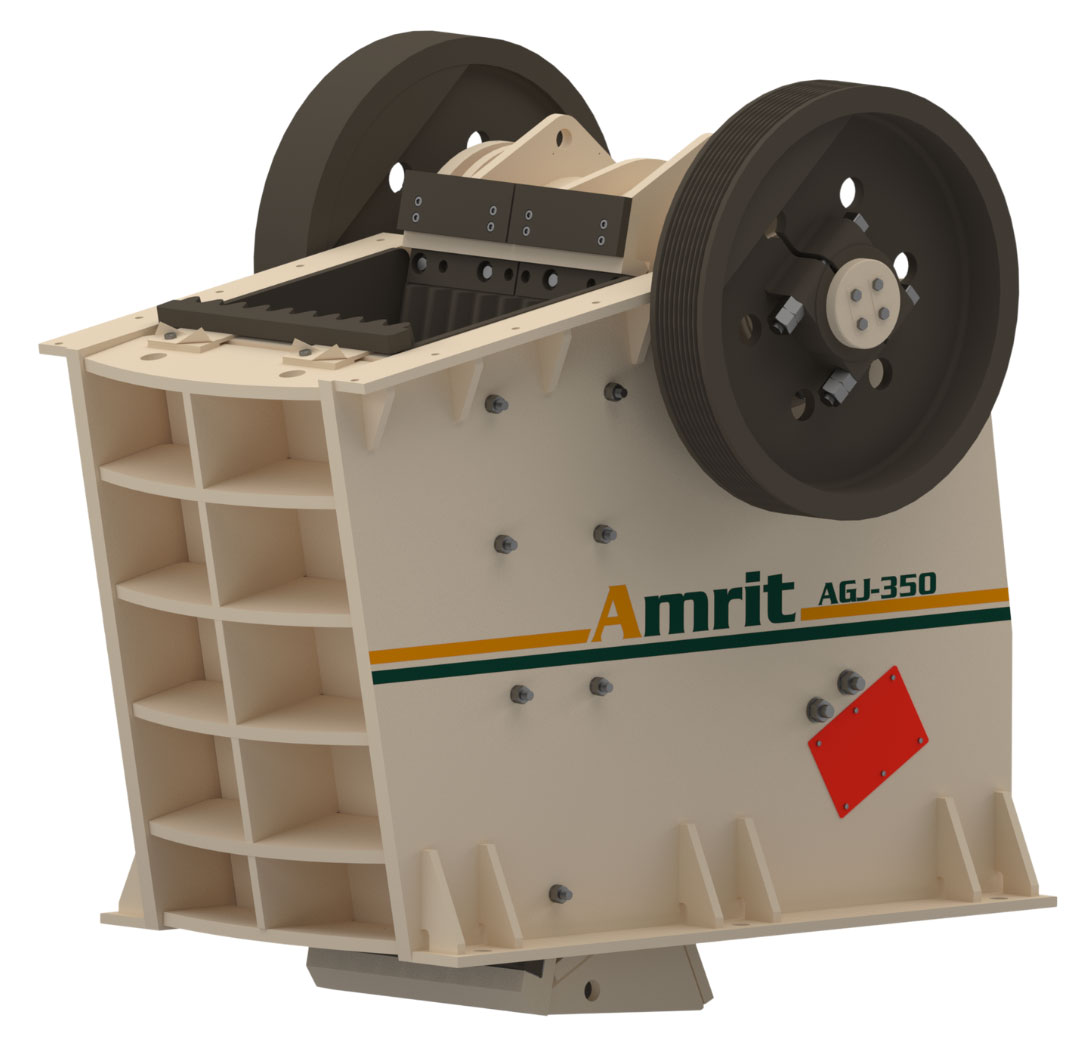

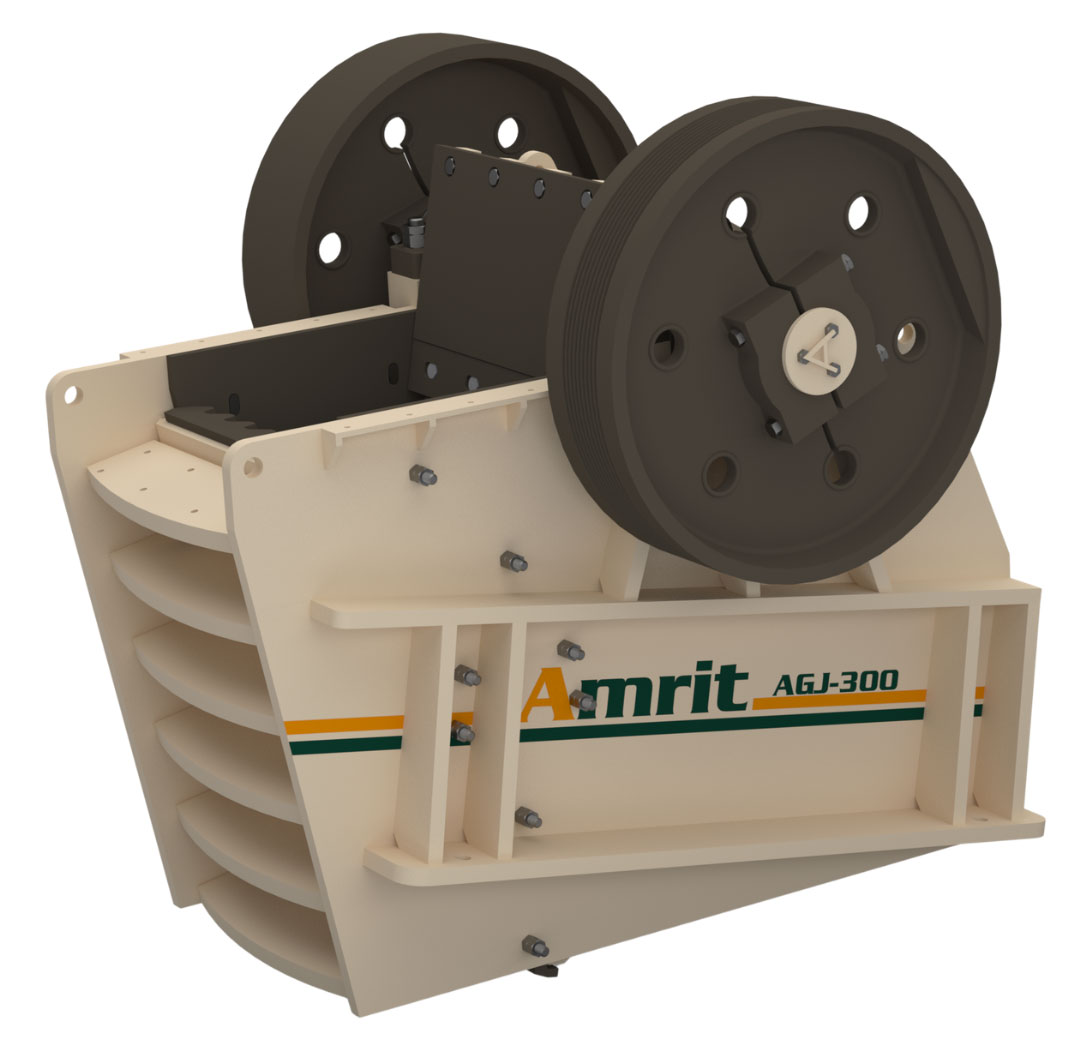

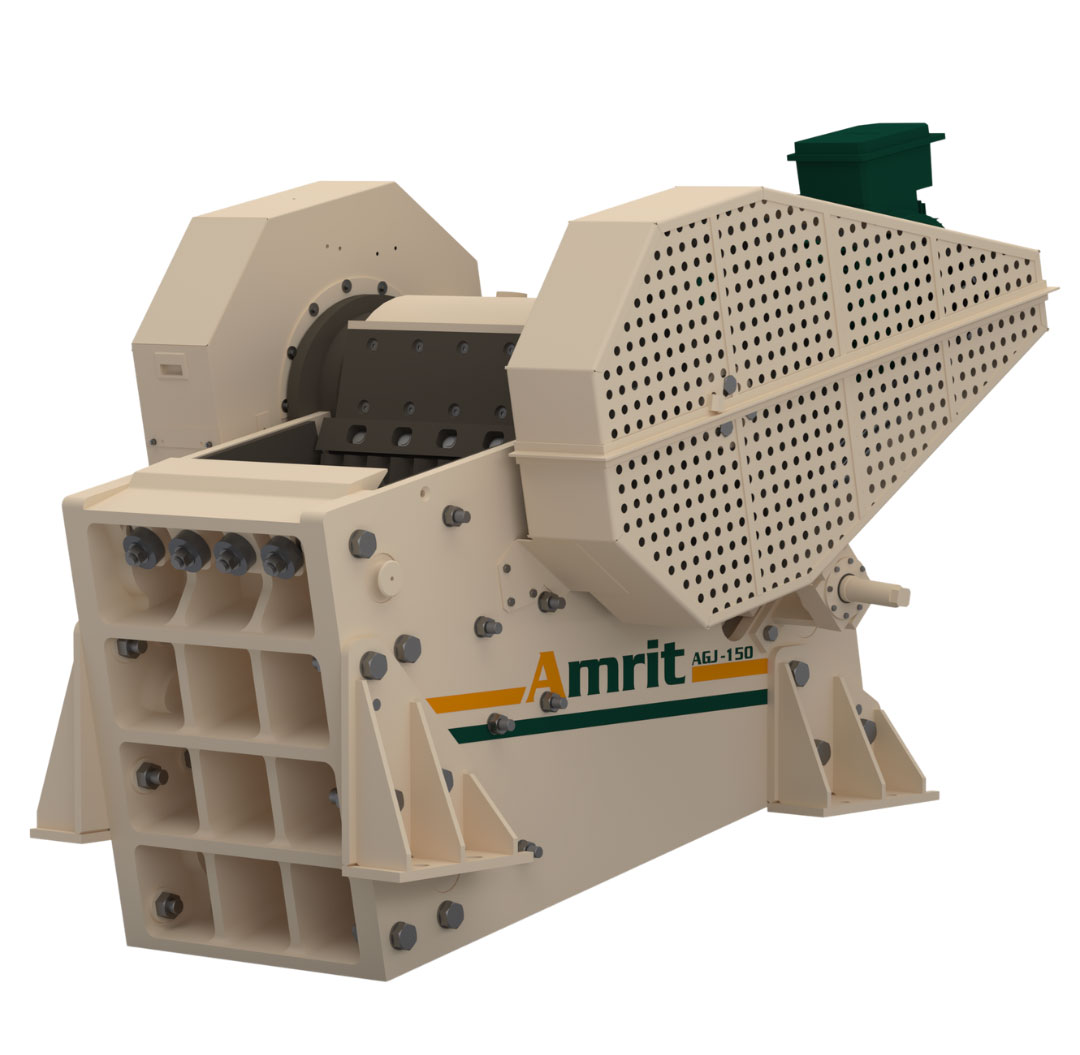

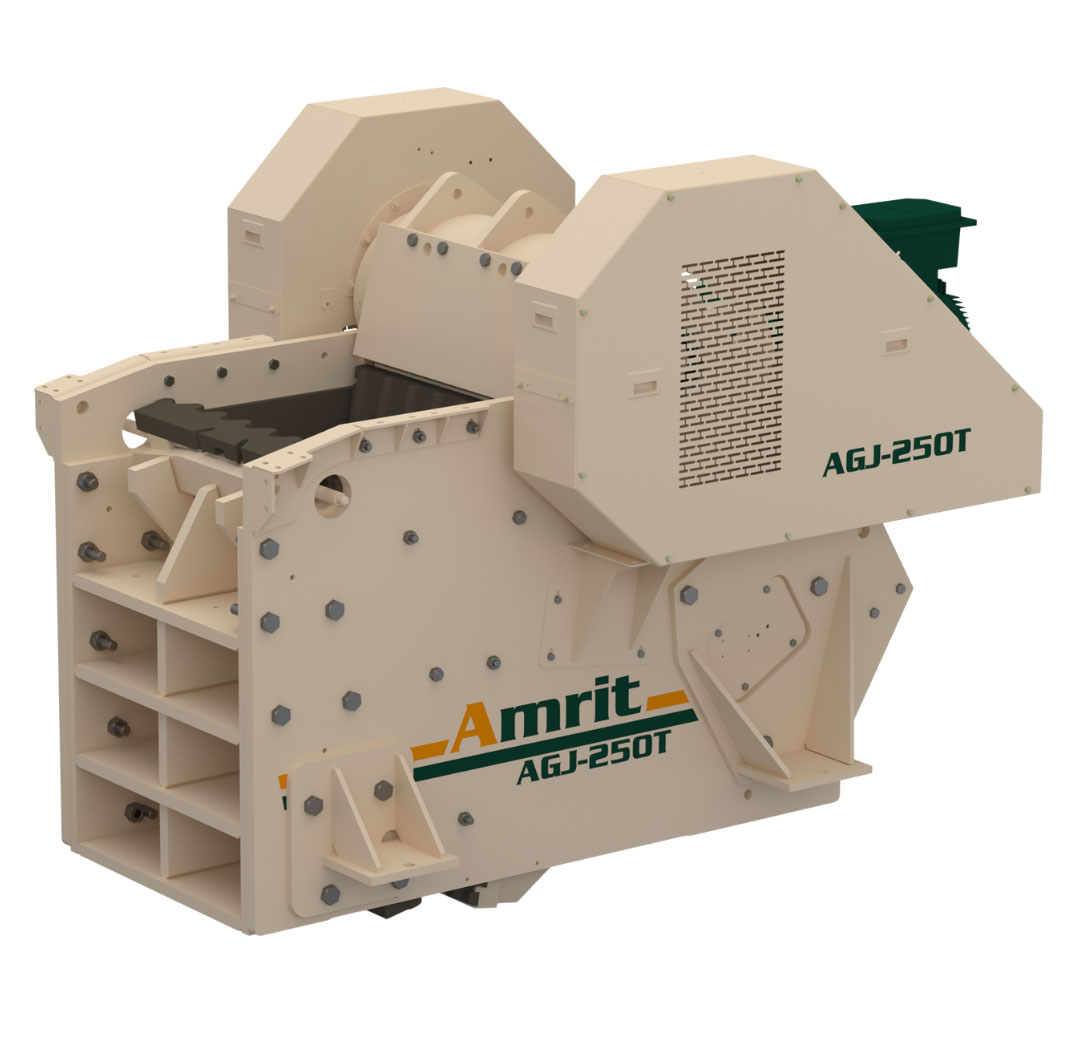

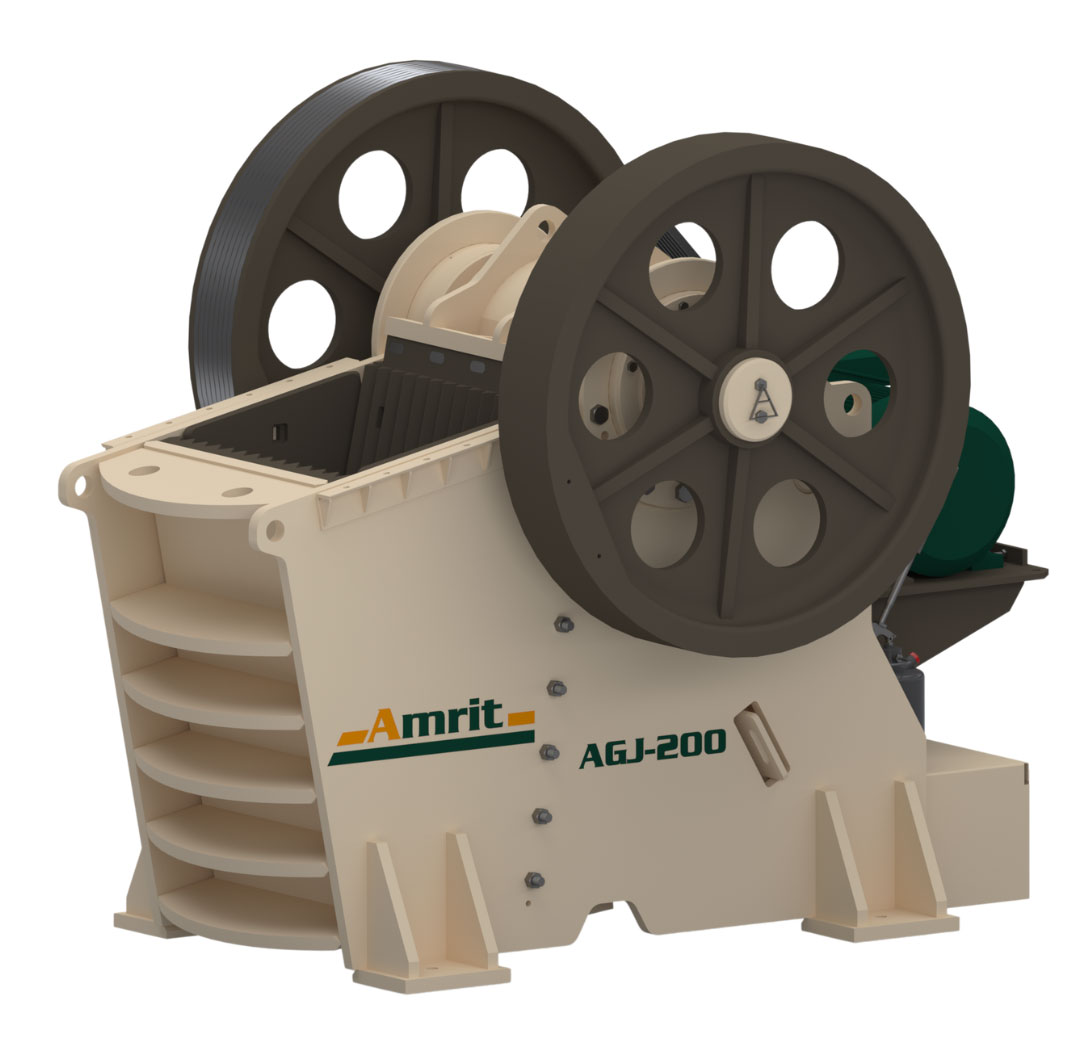

Jaw Crusher AGJ-Series
AGJ Series jaw crushers are purpose-built to handle the most demanding feed materials in primary, secondary & tertiary crushing operations. They are known for their robust performance and reliability across industries such as quarrying, mining, recycling, and industrial minerals processing.
Designed with operator safety and ease of maintenance in mind, they ensure operational efficiency and user convenience.
Jaw Crusher AGJ-Series Product Catalog
Technical Specifications
| Model No | AGJ-150 | AGJ-200 | AGJ-250T | AGJ-250 | AGJ-300 | AGJ-350 |
|---|---|---|---|---|---|---|
| Feed Opening (mm/in) | 920 x 615 36 x 24 | 905 x 705 36 x 28 | 1075 x 765 43 x 30 | 1120 x 815 44 x 32 | 1275 x 955 50 x 38 | 1205 x 1005 48 x 40 |
| CSS Range (Min / Max) | 60-150 | 50-175 | 75-210 | 75-200 | 100-250 | 100-250 |
| Max Feed Size (in/mm) | 20in / 500mm | 23in / 580mm | 26in / 650mm | 28in / 700mm | 32in / 800mm | 33in / 850mm |
| Motor (HP/Kw) | 100HP / 75Kw 1000 RPM | 120HP / 90Kw 1500 RPM | 150HP / 110Kw 1500 RPM | 150HP / 110Kw 1000 RPM | 215HP / 160Kw 1000 RPM | 177HP / 132Kw 1000 RPM 215HP / 160Kw 1000 RPM |
| RPM | 275 | 220 | 255 | 230 | 200 | 200 |
| Capacity (Avg TPH) | 80-200 | 160-300 | 135-430 | 130-400 | 190-660 | 355-540 |
Build A Better
World Together
Advantages
- Premium shaped aggregates.
- Easy and safe maintenance.
- Low operation cost for per metric Ton.
- Reduced power consumption.
- Reduced Risk of Segregation.
Key Features
Robust Construction
It made with alloy steel plates for enhanced load absorption and durability.
Self-Alignment and Heavy Load Capacity
High-quality jaw plates and material options improve performance and lifespan.
Durable and High-Strength Construction
The main shaft is made of EN19/EN24 steel, and the swing jaw is fabricated from high-alloy steel plates or a single casting for durability and wear resistance.
Advanced Jaw Plate Design
Strong Crushing Force Fly wheels are Provided
AGJ-Series Specifications
- Easy Portability and quick installation with minimum support structures.
- Robust body made of 63mm Plate E350Br material.
- High-quality steel frame.
- Special taper lock sleeve bearing for wider spherical roller bearing for self-alignment.
- Can handle higher load .
- Provides a greater factor of safety.
- Results in higher production capacity.
