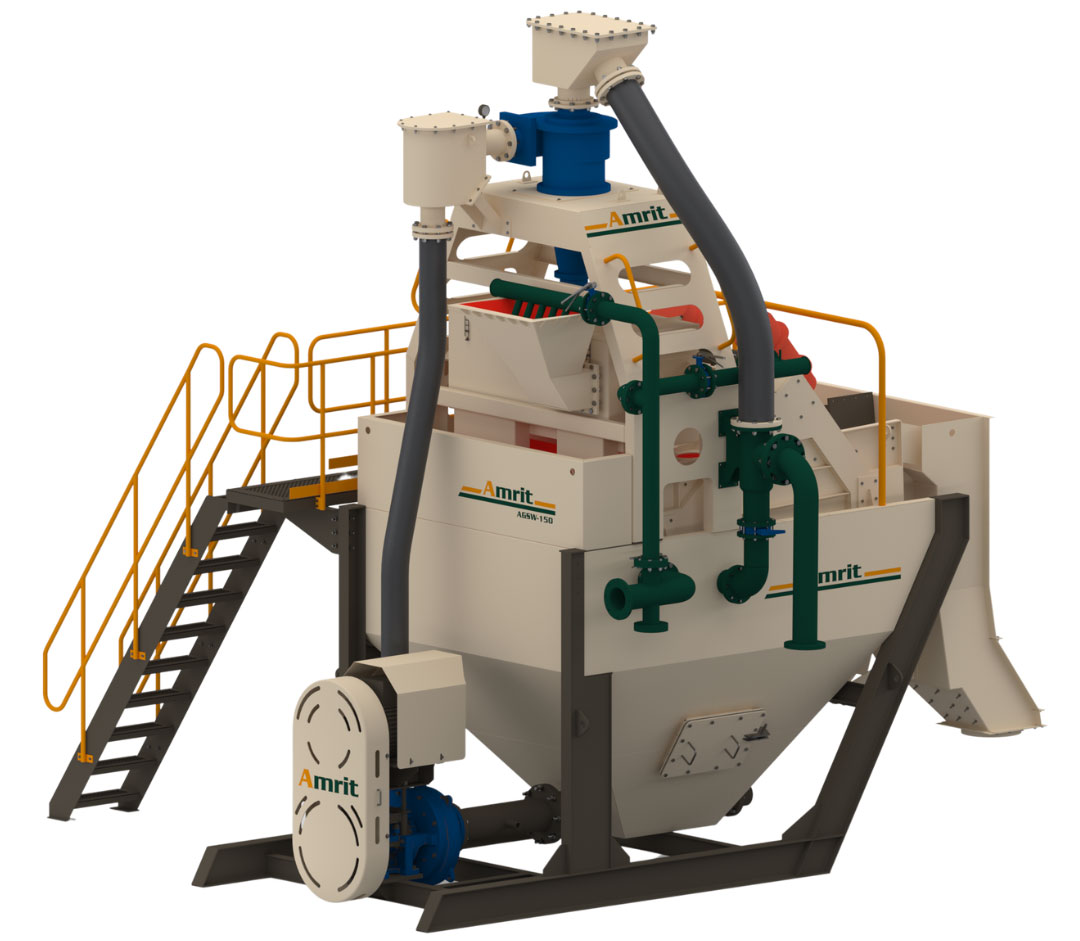

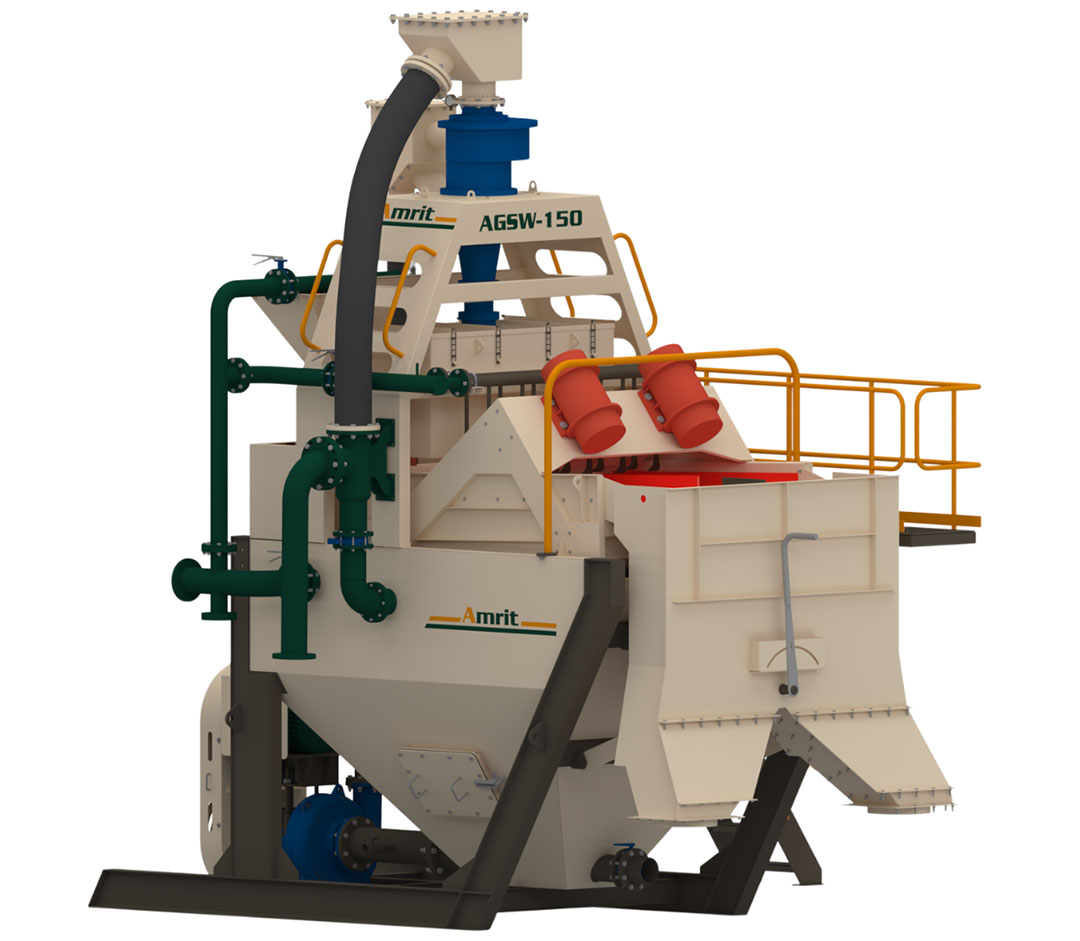

Sand Washer – AGSW Series
The AGSW Series Sand Washer from Amrit Stone Crusher Equipments is an industrial sand cleaning machine mainly used in stone crushing plants, construction sites, and aggregate processing units to remove dust, clay, and impurities from sand.
Technical Specifications
| Model No | AGSW – 100 | AGSW – 150 | AGSW – 200 | AGSW – 250 |
|---|---|---|---|---|
| Hydro Cyclone Size (mm) | 400 | 500 | 600 | 600 |
| Slurry Pump Size (Suction x Delivery) | 152.4 x 101.6 | 203.2 x 152.4 | 203.2 x 152.4 | 203.2 x 152.4 |
| Slurry Pump Capacity (m3/hr) | 130 | 200 | 250 | 250 |
| Slurry Pump Power (HP/Kw) | 20HP / 15KW | 40HP / 30KW | 50HP / 37KW | 60HP / 45KW |
| Capacity (Avg TPH) | 60-80 | 90-120 | 120-160 | 150-250 |
| Dewatering Screen Area (W x L) | 1800 x 2800 | 1800 x 2800 | 1800 x 4000 | 2400 x 3850 |
| Dewatering Motor (Kw) | 2 x 4HP / 2 x 2.88Kw | 2 x 4HP / 2 x 2.88Kw | 2 x 8HP / 2 x 6.2Kw | 2 x 15HP / 2 x 11Kw |
| Dewatering Capacity (Avg TPH) | 60-120 | 90-120 | 120-160 | 150-250 |
