Static Plants

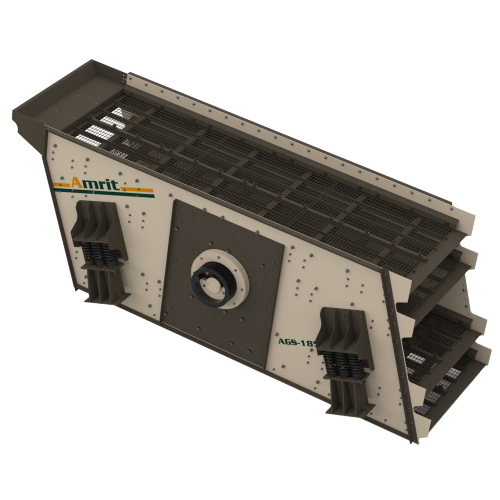

Vibrating Screen AGS-Series
AMRIT offers a wide range of Vibrating Screen machines for crushing, rock processing, and mining. These machines are designed for efficiency, durability, and low maintenance, ensuring more consistent performance and reducing operational costs.
| MODEL NO | AGS-1850DD | AGS-1850 | AGS-2160DD | AGS-2160 | AGS-2460 |
|---|---|---|---|---|---|
| Screen Size (W x L) mm |
1800 x 4800 | 1800 x 4800 | 2000 x 6000 | 2100 x 6000 | 2400 x 6000 |
| Screening Area (sq.mtr) | 8.6 | 8.6 | 12 | 13 | 14.5 |
| Number of Decks | 2 / 3 / 4 | 2 / 3 / 4 | 2 / 3 / 4 | 2 / 3 / 4 | 2 / 3 / 4 |
| Type of Motion | Circular | Circular | Circular | Circular | Circular |
| Motor (Kw) | 2D - 2 x 7.5Kw 3D - 2 x 9Kw 4D - 2 x 9Kw |
2D - 2 x 18.5Kw 3D - 22Kw 4D - 30Kw |
2D - 2 x 9Kw 3D - 2 x 11Kw 4D - 2 x 11Kw |
2D - 22Kw 3D - 30Kw 4D - 37Kw |
2D - 30Kw 3D - 37Kw 4D - 37Kw |
| Capacity (Avg TPH) | 650 | 600 | 700 | 750 | 800 |
NOTE: The capacity figures shown in the above chart are approximate and may vary depending on the version and stone specifications.
