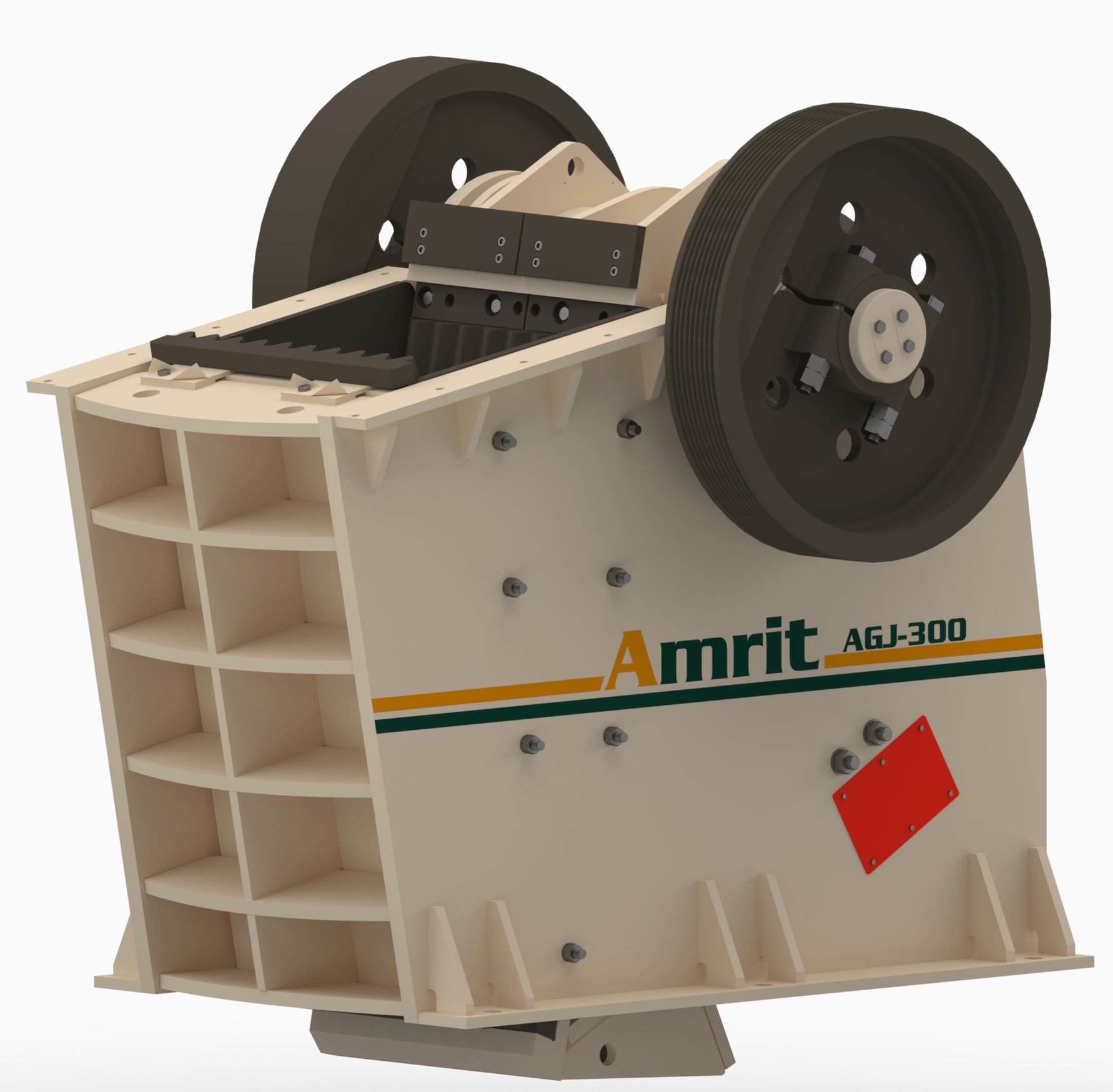

Jaw Crusher AGJ-Series
AMRIT provides an extensive range of Jaw Crushers, catering to various production and operational demands. Our machines are engineered for durability and performance, ensuring efficient crushing. while minimizing wear and also delivering consistently shaped, high - quality material at lower operational costs.
.png)
Key Features
Robust Construction
It made with alloy steel plates for enhanced load absorption and durability.
Self-Alignment and Heavy Load Capacity
High-quality jaw plates and material options improve performance and lifespan.
Durable and High-Strength Construction
The main shaft is made of EN19/EN24 steel, and the swing jaw is fabricated from high-alloy steel plates or a single casting for durability and wear resistance.
Advanced Jaw Plate Design
Strong Crushing Force Fly wheels are Provided

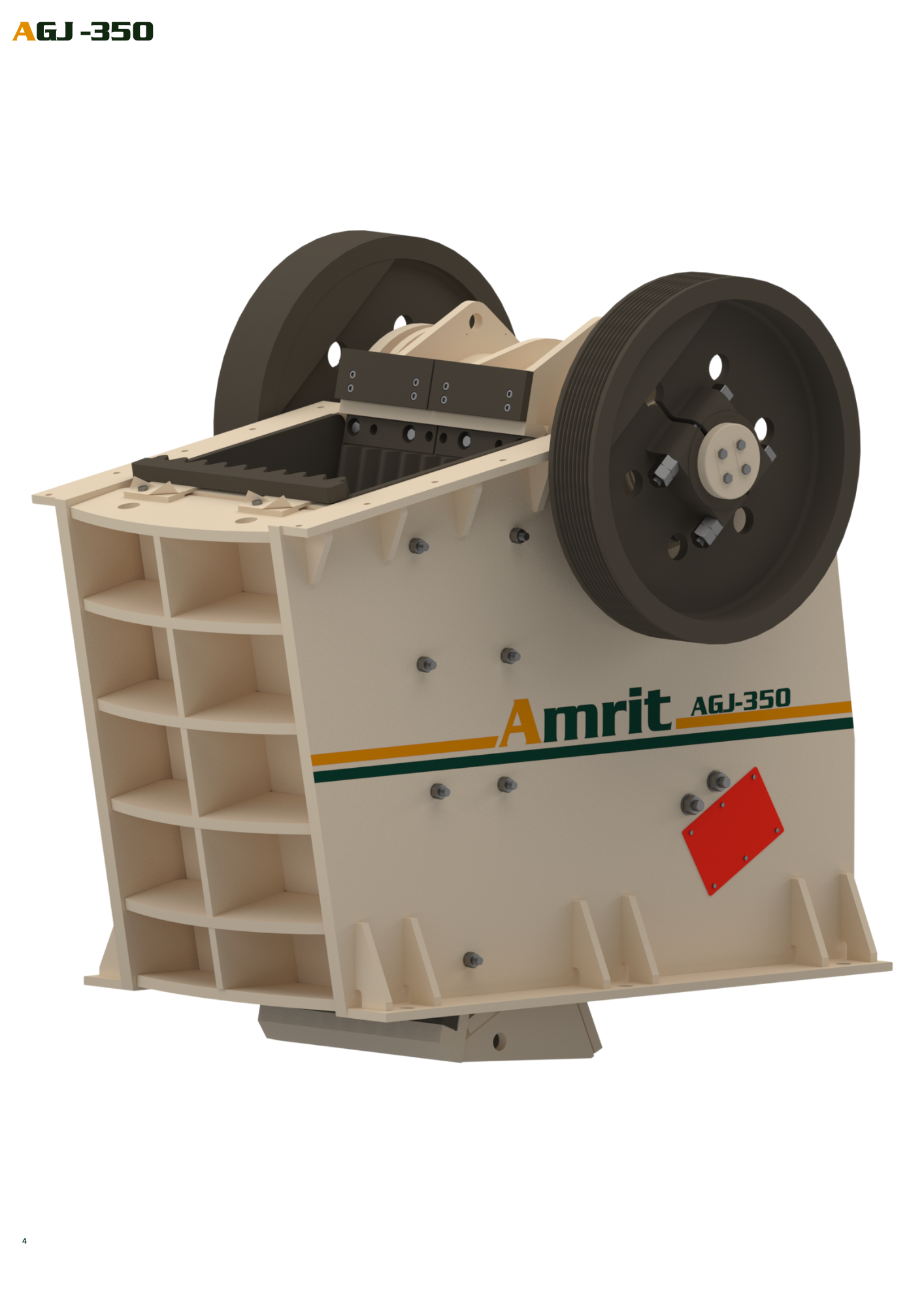

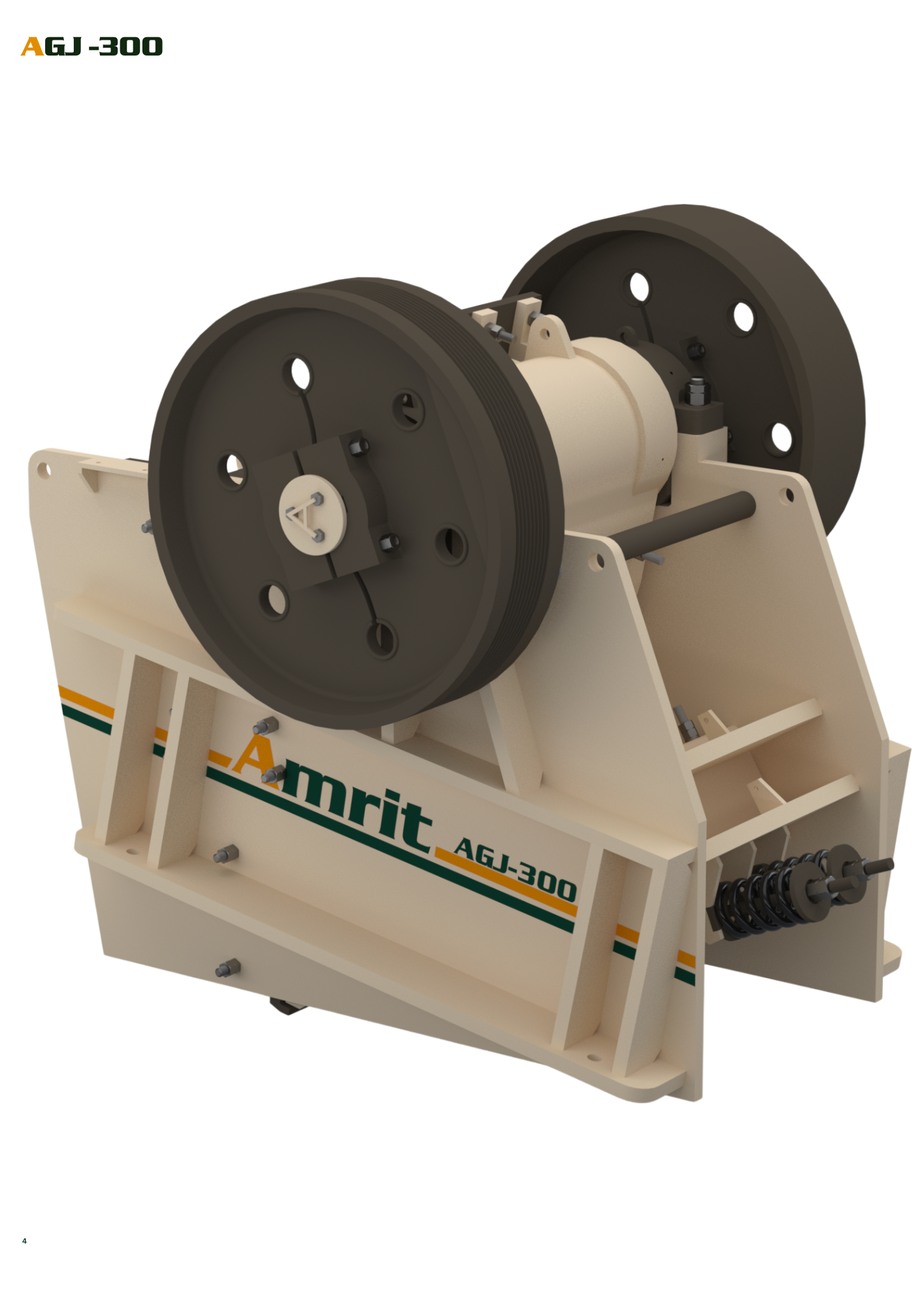

| MODEL NO | AGJ-150 | AGJ-200 | AGJ-200T | AGJ-250 | AGJ-300 | AGJ-350 |
|---|---|---|---|---|---|---|
| Feed Opening (mm/in) | 920 x 615 36 × 24 |
905 x 705 36 × 28 |
1075 x 765 43 × 30 |
1210 x 815 44 × 32 |
1275 x 955 50 × 38 |
1205 x 1005 48 × 40 |
| CSS Range (Min/Max) |
60 - 150 | 50 - 175 | 75 - 210 | 75 - 200 | 100 - 250 | 100 - 250 |
| Max. Feed Size (in/mm) | 20in / 500mm | 23in / 580mm | 26in / 650mm | 28in / 700mm | 32in / 800mm | 33in / 850mm |
| Motor (HP/Kw) | 100HP / 75Kw 1000 RPM |
120 HP/90Kw 1500 RPM |
150 HP/110Kw 1500 RPM |
150HP/110 Kw 1000 RPM |
215HP/160 Kw 1000 RPM |
177HP/132 Kw 1000 RPM or 215HP/160 Kw 1000 RPM |
| Motor Speed (RPM) | 275 | 220 | 255 | 230 | 200 | 200 |
| Capacity (Avg TPH) Varies Upon CSS | 80-200 | 160-300 | 135-430 | 130-400 | 190-660 | 355-540 |
NOTE: The capacity figures shown in the above chart are approximate and may vary depending on the version and stone specifications.
AGJ-Series Specifications
- Easy Portability and quick installation with minimum support structures.
- Robust body made of 63mm Plate E350Br material.
- High-quality steel frame.
- Special taper lock sleeve bearing for wider spherical roller bearing for self-alignment.
- Can handle higher loads .
- Provides a greater factor of safety.
- Results in higher production capacity.
Advantages
- Premium shaped aggregates.
- Easy and safe maintenance.
- Low operation cost for per metric Ton.
- Reduced power consumption.
- Reduced Risk of Segregation.
